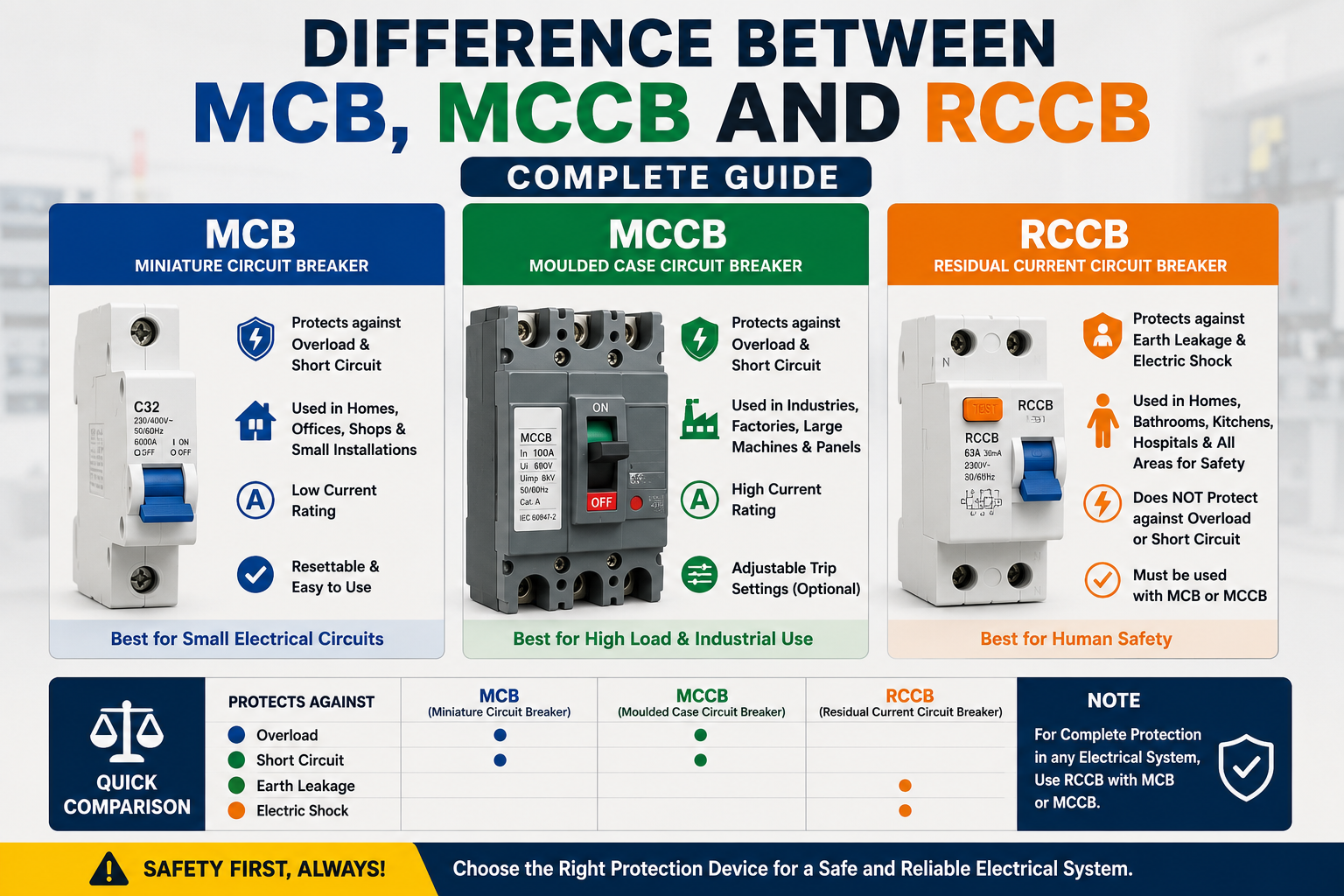

Difference Between MCB, MCCB and RCCB: Which One Do You Really Need?

When it comes to electrical safety, choosing the right protection device is just as important as using quality wiring or electrical equipment. If you've ever purchased electrical components, you've probably come across terms like MCB, MCCB, and RCCB.

At first glance, they may look similar because all three are installed inside electrical distribution boards. However, they are designed to solve different problems. Using the wrong one can leave your electrical system unprotected, while using the right combination can prevent equipment damage, electrical fires, and even save lives.

In this guide, we'll explain the difference between MCB, MCCB, and RCCB in simple language so you can choose the right protection device with confidence.

What is an MCB?

MCB stands for Miniature Circuit Breaker.

An MCB protects electrical circuits from overload and short circuit conditions. Whenever the current exceeds the safe limit, the MCB automatically trips and disconnects the power supply.

Instead of replacing a fuse every time a fault occurs, you simply reset the MCB after fixing the issue.

Common Applications

• Homes
• Offices
• Shops
• Small workshops
• Lighting circuits
• Socket circuits

Advantages

• Easy to reset
• Reliable protection
• Low maintenance
• Compact size
• Affordable cost

Limitations

An MCB cannot protect against electric shock or leakage current.

What is an MCCB?

MCCB stands for Moulded Case Circuit Breaker.

An MCCB performs the same basic function as an MCB but is designed for much higher current ratings and larger electrical systems.

It protects against:

• Overload
• Short circuit

Many MCCBs also allow adjustable trip settings, making them ideal for industrial applications where electrical loads vary.

Common Applications

• Factories
• Industrial plants
• Commercial buildings
• Large motors
• Heavy machinery
• Distribution panels

Advantages

• High current capacity
• Adjustable protection settings
• Greater breaking capacity
• Longer service life
• Suitable for industrial use

Limitations

Like an MCB, an MCCB does not detect earth leakage or electric shock.

What is an RCCB?

RCCB stands for Residual Current Circuit Breaker.

Unlike an MCB or MCCB, an RCCB is designed to protect people, not equipment.

It continuously compares the current flowing through the live and neutral wires. If it detects even a small leakage of current—such as electricity passing through a person's body or to earth—it disconnects the power supply within milliseconds.

RCCB Protects Against

• Electric shock
• Earth leakage
• Insulation failure

Common Applications

• Homes
• Hospitals
• Schools
• Offices
• Bathrooms
• Kitchens
• Outdoor electrical installations

Advantages

• Saves lives
• Detects leakage current quickly
• Reduces fire risk caused by earth faults
• Improves overall electrical safety

Limitations

An RCCB does not protect against overload or short circuit. It should always be installed together with an MCB or MCCB.

MCB vs MCCB vs RCCB: Comparison Table

Which One Should You Choose?

The answer depends on your electrical system.

Choose an MCB if:

• You need protection for a home.
• You are protecting lighting or socket circuits.
• Your electrical load is relatively small.

Choose an MCCB if:

• You have industrial machinery.
• You operate heavy electrical loads.
• You need adjustable protection settings.
• Your system carries high current.

Choose an RCCB if:

• You want protection against electric shock.
• Human safety is a priority.
• You need earth leakage protection.

Can They Work Together?

Absolutely.

In fact, the safest electrical systems use them together.

A typical setup looks like this:

Main Supply → RCCB → MCBs → Electrical Loads

For industrial installations, the setup may be:

Main Supply → MCCB → RCCB → Distribution Board

Each device has its own job, and together they provide complete electrical protection.

Common Mistakes People Make

Many people believe that installing only an RCCB is enough.

It isn't.

An RCCB cannot detect overloads or short circuits.

Similarly, installing only an MCB protects equipment but not people from electric shock.

The best practice is to use both devices together for complete protection.

Why Quality Circuit Breakers Matter

Electrical protection devices are your first line of defense.

Choosing poor-quality products can lead to:

• False tripping
• Failure during faults
• Equipment damage
• Fire hazards
• Increased maintenance costs

Always purchase circuit breakers from trusted suppliers and reputable brands.

Final Thoughts

MCBs, MCCBs, and RCCBs may look similar, but they are designed for different purposes.

An MCB protects against overloads and short circuits in smaller electrical systems.

An MCCB offers the same protection for larger, high-current industrial installations with additional flexibility.

An RCCB focuses on protecting people by detecting earth leakage and reducing the risk of electric shock.

The safest electrical installation often combines these devices to provide complete protection for both people and equipment.

At AL-RAFAY ELECTRIC STORE, we provide high-quality electrical protection devices, industrial automation products, PLC accessories, sensors, relays, and other trusted electrical solutions. Whether you're upgrading a home distribution board or designing an industrial control panel, selecting the right protection devices is an investment in safety and reliability.

Frequently Asked Questions (FAQs)

Is an MCB better than an RCCB?

No. They serve different purposes. An MCB protects electrical circuits from overload and short circuits, while an RCCB protects people from electric shock caused by leakage current.

Can I use an RCCB without an MCB?

No. An RCCB should always be paired with an MCB or MCCB because it does not provide overload or short-circuit protection.

Where is an MCCB commonly used?

MCCBs are widely used in factories, industrial plants, commercial buildings, and applications with high electrical loads.

Does an MCB protect against electric shock?

No. For protection against electric shock, you need an RCCB.

Which circuit breaker is best for home use?

Most homes use a combination of MCBs for circuit protection and an RCCB for leakage protection, providing both equipment and personal safety.
